CASE 02 / Removal case 2
Case 2 — Clinic B
System: CT Aquilion Lightning
Point
- Special extraction through a window only 1.5 m high
- Laid the system on its side at 90°, removed the window frame, and completed removal
Even when standard routes were blocked, exterior extraction was completed by removing the frame and changing the orientation.
Work sequence
-

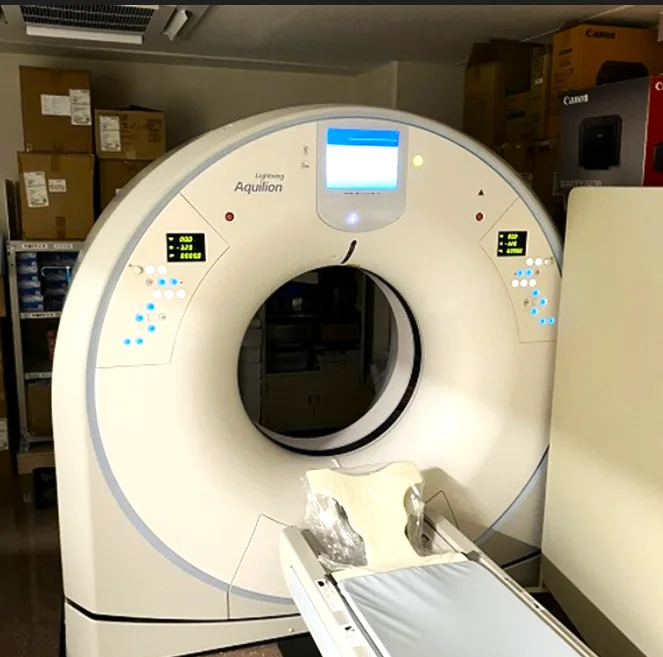

STEP 01
Before removal
Aquilion Lightning at Clinic B. Standard doorways were not usable, so we planned exterior extraction via the window.
-

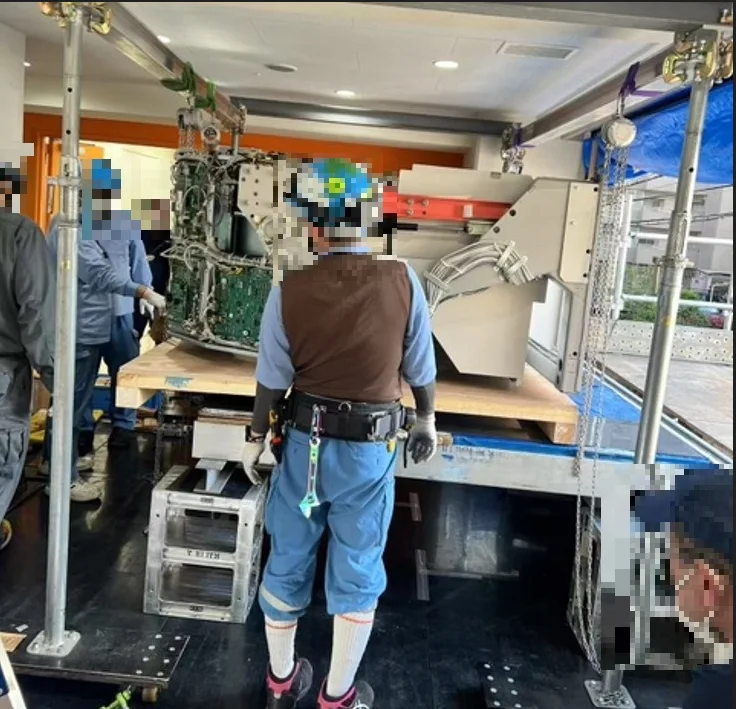

STEP 02
Remove frame, tilt gantry 90°
The window frame was removed and the gantry laid on its side at 90° to match the limited opening.
-

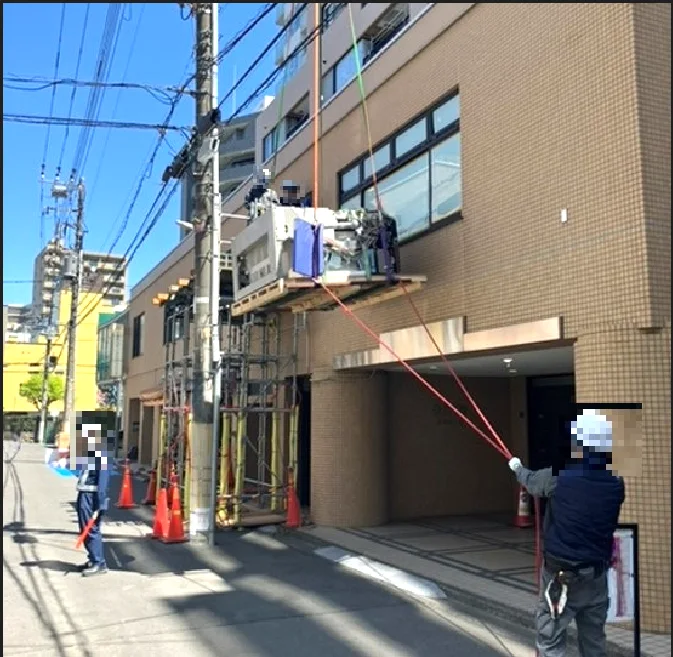

STEP 03
Clear the window and move outside
The system cleared the window height and was moved outdoors, stabilized by crane and guide ropes.
-

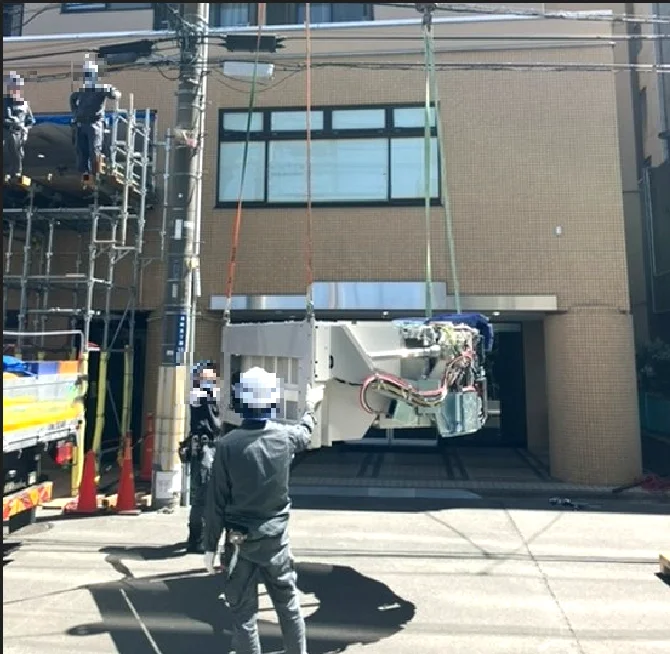

STEP 04
Lowered to ground — complete
The system was lowered to ground level and removal was completed.
Contact us about similar special extractions or equipment removal.
